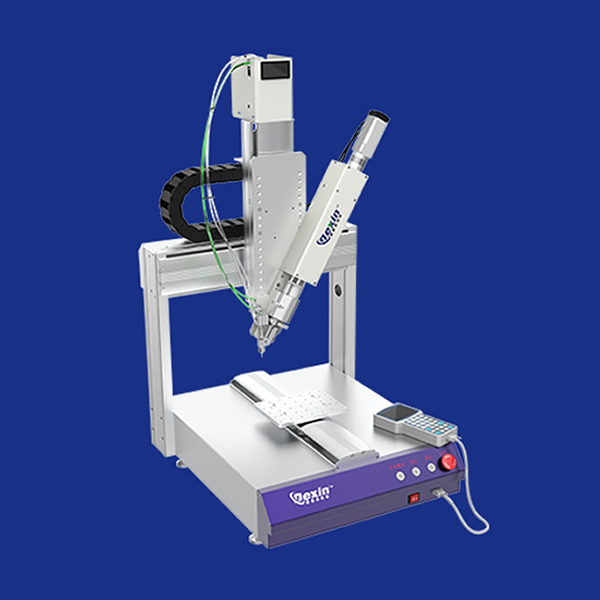

Desktop servo dispensing machine

model: DEX-400S

Processing range: 400/400/100

Maximum load: 5 kg

Mobile speed: 0.1-300/250

Program recording capacity: at least 999 groups, with 4000 points per group

Data storage method: CF Card

Display mode: Teach Pendant LCD

Motor system: Brand servo motor

Operation mode: PTP & CP

Motion compensation function: 3 axes (any path in 3D stereoscopic space is available)

Editing mode: Teaching box/PC

I/O signal port: 8 inputs/8outputs

External control interface: RS232

Working voltage: AC110～220V 1000W

Working environment temperature: 10～40℃

Working environment humidity: 20～90% no condensation

Dimensions: 610/710/620mm

Desktop servo dispensing machinemachine performance

1. Chinese keyboard operation, easy to learn and understand;

2.Having drawing points,Line, surface, arc, circle Functions such as continuous interpolation of irregular curves and three-axis linkage；

3.The software has functions such as area array, translation and rotation operations, etc；

4.The size, thickness, coating speed, dispensing time, and stopping time of the adhesive can all be set as parameters, and the adhesive output is stable without any leakage or dripping；

5.According to process requirements,Can install workbench positioningPINGlue gun or bottom plate heating and temperature control device

6.Suitable for fluid dispensing,For example: UV glue, AB glue, EPOXY (black glue), white glue, EMI conductive glue SILICON、 Epoxy resin, instant adhesive, silver adhesive, red adhesive, solder paste, heat dissipation paste, solder paste, transparent paint, screw fixing agent, etc

7Suitable forobject:Mobile phone, Bluetooth earphones, PC board LCD、LED、DVD、 Digital cameras, switches, connectors, relays, heat sinks, semiconductors, and other electronic products that require liquid dispensing, as well as products that can be connected to SMT equipment for quick dispensing/gluing, clocks, toys, medical equipment, etc

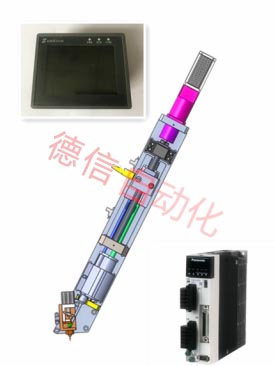

Supporting use of 50MLServo glue pushing detailed information

Desktop servo dispensing machineProduct Features:

1: Use servo motor pressure to drive the source, with constant pressure to ensure precise dispensing.

2: Not affected by compressed air sources.

3: Suitable for various brands of 50ML AB adhesive.

4: Equipped with a built-in refrigeration system to delay the curing time of AB adhesive.

5: Glue dispensing accuracy/-0.002
